syscalls

Work in Progress

Summary

POSIX syscalls for spawning processes

Syscall	Include	Function
`fork()`	`<unistd.h>`	duplicates the current process returns `0` in the child and child’s pid in the parent
`execl(path, arg...)`	`<unistd.h>`	replace the current process image with a new one returns `-1` only if error
`exit(status)`	`<unistd.h>`	terminate the current process does not return, passes `status` to the parent process
`wait(status)`	`<unistd.h>`	wait for one child process to terminate and stores it’s status returns the pid of the child process that terminates
`getpid()`	`<unistd.h>`	returns the pid of the current process

Concept

System calls

API to the OS
calling services in the kernel
change to kernel mode
UNIX:
- POSIX standards
- ~100 calls
Windows:
- Win API
- ~1000 calls

Invocation

function wraper
- library provides a version with the same name and parameters
- passes parameters 1-to-1 to the syscall
function adapter
- library provides a more user friendly version
- handles more complicated setup for the syscall

char msg[] = "Hello world!";
// wrapper
write(1, msg, 13); // 1 is the fd for stdout
// adapter
printf(msg); // other parameters are handled by the function

use strace on the binary to see the syscalls made by adapters

Mechanism

user mode: program sets syscall register
kernel mode: dispatcher checks the value and calls the corresponding handler
user mode: return to program

Process hierachy

Master process

init process
pid = 1
spawns all other processes via fork() + exec()

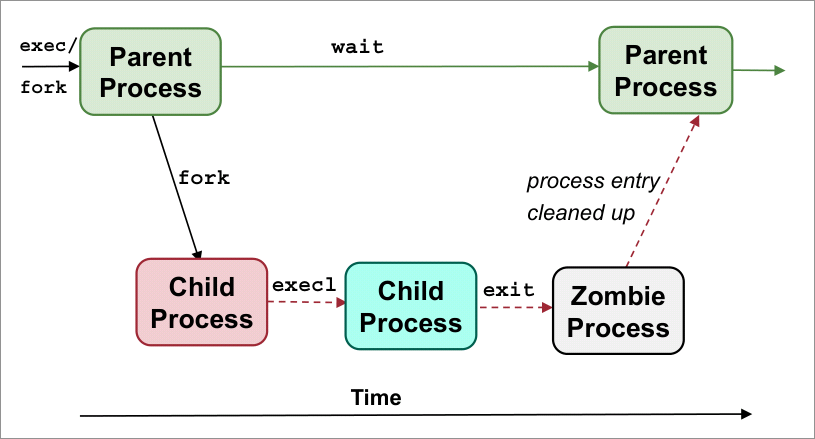

Zombie processes

process that has terminated
hold onto process data until wait() in the parent
parent terminates before child -> init becomes parent, init calls wait()
child terminates but parent doesn’t call wait() -> child remains a zombie

Application

Forking

int result;
result = fork(); // A
if (result==0)
	fork(); // B
else {
	fork(); // C
	fork(); // D
}
printf("Hello\n"); //how many? 6
return 0;

Waiting

assuming that wait doesn’t block when there are no child processes

int main() {
	// This is process P
	if (fork() == 0) {
		// This is process Q
		if (fork() == 0) {
			// This is process R
			......
			return 0;
		}
		<Point α>
	}
	<Point β>
	return 0;
}
// breaking down into processes
// process P
if (fork() == 0) // parent, so skip
<Point β>
// process Q
if (fork() == 0) { // child, so enter
	if (fork() == 0) // parent, so skip
	<Point α>
}
<Point β>
// process R
if (fork() == 0) { // child, so enter
	if (fork() == 0) { // child, so enter
		......
		return 0; // exit

Point α	Point β	Behaviour
	`wait(NULL)`	P waits for Q Q waits for R
`wait(NULL)`		P doesn’t wait Q waits for R
`wait(NULL)`	`wait(NULL)`	P waits for Q Q waits for R
`execl(...)`	`wait(NULL)`	P waits for Q Q may no longer wait
`wait(NULL)`	`execl(...)`	P may no longer wait Q waits for R

execl() replaces the process image, so any original code after it is replaced

Forking factorial

scope is irrelevant, whole process is duplicated

int factorial(int n) {
	if (n == 0) {
		fork();       // forked up, only on the last iteration
		return 1;
	}
	return factorial(n‐1) * n;
}
int main() {
	printf("fac(2) = %d\n", factorial(2));
	return 0;
}
// output
// fac(2) = 2
// fac(2) = 2
