firewall & IDS

Summary

Firewalls

• control inbound/outbound traffic based on rules
• Packet Filter:
  • checks IP headers (stateless)
  • deep packet inspection(DPI) -> check the payload as well
  • block traffic from certain IP or port
• Stateful Firewall:
  • tracks connection states
  • count number of requests from a particular IP address
  • block abnormal connection patterns/login attempts
• Application Proxy:
  • inspects and possibly modify higher-layer data transmitted between client and server
  • block URLs or scan for malware

statefulness is related to some sort of memory

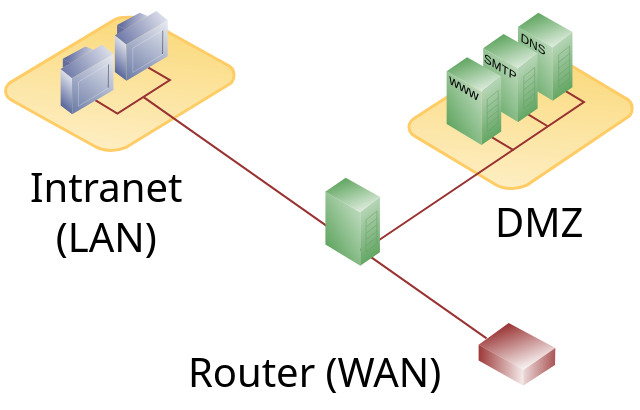

Demilitarized Zone(DMZ)

• network segment exposed to the internet but isolated from internal systems
• hosts public-facing services, ie. web/mail
• internal LAN stays protected behind an additional firewall
• an example of compartmentalization and principle of least privilege

Intrusion Detection Systems (IDS)

• Signature-based:
  • detects known attack patterns
• Anomaly-based:
  • flags deviations from normal behavior
• Behavior-based:
  • monitors user/system activity patterns
